Embedded Card (Discontinued)
PCI Express cable, 1000Base-T ethernet PHY, UART, SRAM/Flash HSMC daughter card
The Embedded Card is an extension card having PCI Express Cable(*1), Gigabit Ethernet and UART interfaces and SRAM and Flash memories, for various FPGA development kits with Intel® High-Speed Mezzanine Connector (HSMC) defined by Intel®. The users of this card can start development and evaluation of embedded designs using Intel® soft processor core Nios II with the provided storage and work memory areas and peripheral interfaces, just by attaching only this card to the base board.
(*1) When used with Mpression Nitro board, supported only for HSMC Port A and B.
(*2) Cables are not included in the kit.
Features
| Main Device | KSZ 9031MNX(Ethernet PHY), FT234XD(USB to UART Bridge), DS50PCI402SQ(PCIe Repeater) |
| Clock Device | ICS854104AGILF（Clock Buffer） |
| SRAM device | IS61WV25616BLL-10TLI / 512KB (4Mbit) |
| Flash device | JS28F128P30BF75A / 16MB (128Mbit) |
| Interfaces | RJ45(Ethernet), PCIe Cable, SMP(PCIe Clock), USB Micro B connector(UART) |
| Other features | Connects with Intel FPGA based evaluation/development kits through HSMC connector. Example designs are available, 10/100 or Gigabit Ethernet, PCI Express Endpoint, UART loopback, SRAM/FLASH Write and Read test |
Example Connection for Evaluation
Example evaluation environment for Mpression Nitro board. It can extend useful interfaces and embedded peripherals.

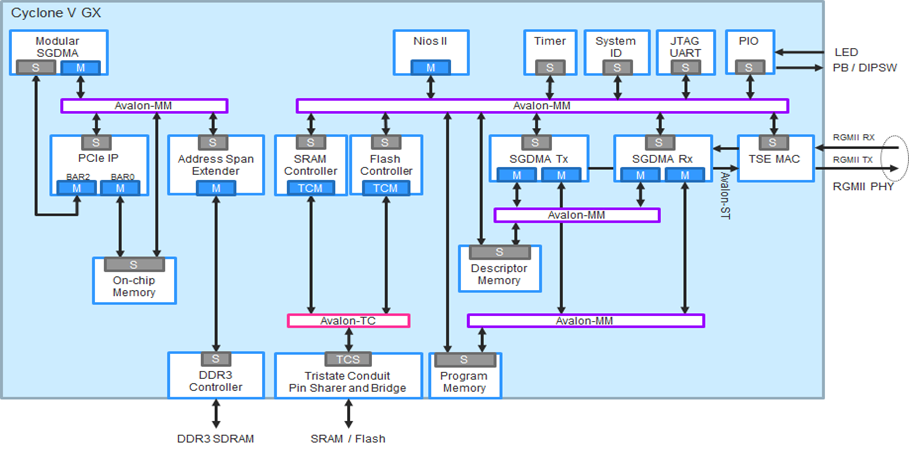

Block Diagram
