Gigabit Ethernet Card
P/N: KGTGENTCD
Gigabit Ethernet Card is a daughter card to use with base boards with Altera FPGAs to attain Gigabit Ethernet. This daughter card uses Micrel's Ethernet PHY, LDO, clock device and a HSMC connector. By connecting with an Altera FPGA based base board, FPGA designers can quickly start designs and evaluations using Gigabit Ethernet interface.
Specifications
| Main device | Micrel Ethernet PHY KSZ9031MNXIA |
| Clock device | Micrel CLK DSC1121DI1 (25MHz) |
| Power | 3.3V - Supplied from HSMC connector 2.5V - Micrel LDO MIC5303-2.5YMT 1.2V - Micrel LDO MIC37122YMT |
| Others | Power LED x2 (2.5V, 3.3V), Status LED x2 (Link/Active, Speed) HSMC connector x 1 |
Use Case Example

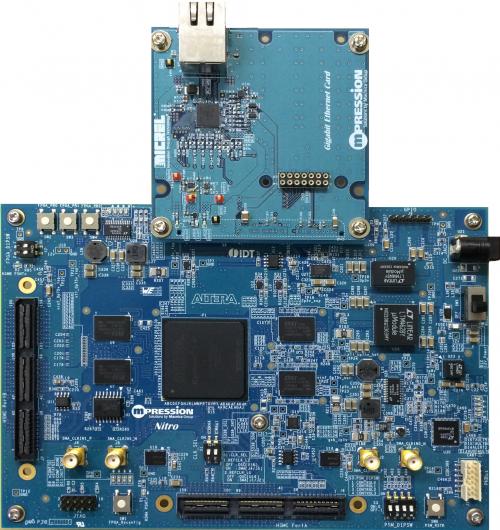

By connecting Gigabit Ethernet Card with Mpression Nitro board (sold separately) using HSMC connector, a designer can start FPGA designs using Ethernet interface very quickly.

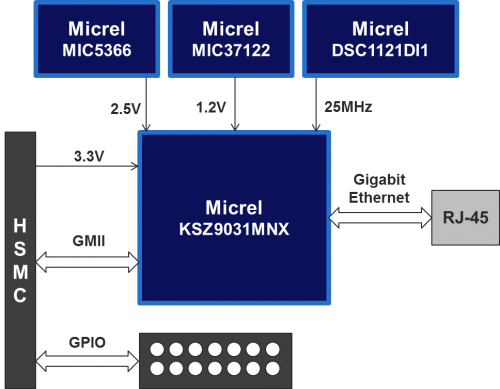

Block Diagram
