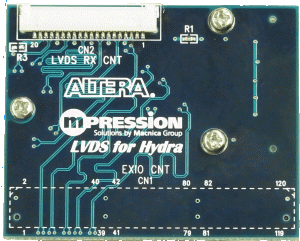

LVDS Daughter Card for Hydra (Discontinued)


This daughter card (ALTHYDRALVDS) is specially designed for LVDS evaluation of Hydra board (ALTHYDRAC5GX) and a board with Renesas's 2nd generation Car Infotainment SoC "R-Car H2", connecting to Hydra board through its EXIO interface. In the case to connect with "R-Car H2" board, only LVDS input signals are provided to the Hydra. By using loop-back function of this card, it can be used for stand-alone LVDS evaluation of Hydra board without connecting to "R-Car H2" board.

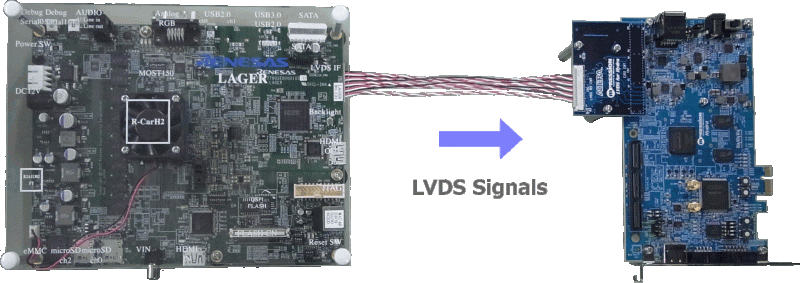

Connection Example
