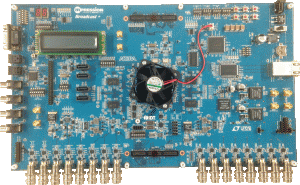

Arria V GX Broadcast+ Board (Discontinued)


Broadcast technology vendors today face a daunting dilemma: how to efficiently handle the trend towards 4K, 8K resolution and higher channel density, while still responding to price pressures from customers and competitors? Broadcast + development Kit enables to solve engineer's pain such a this problem, provides scalable platform for bridging between multiple interfaces to accommodate the high performance bandwidth and low-power serial connectivity requirements of IT equipment


Main device 5AGXFB3H4F40C4N
Power device LT3029EDE, LT1763CS8-3.3, LTM4601EV, LTC2991CMS, LTM4603EV, LT1763CS8-1.5, LT3022EMSE-1.8, LT3510EFE, LT1963AEQ-3.3, LTC3634IFE
Memory Micron MT41K256M16HA-125 (Compatible items)
Configuration MAX V 5M1270ZT144C5N for Palarel Flash Loader
Interfaces HSMC, SDI, Gigabit Ethernet, SATA, RS232C, S/PDIF, JTAG
Other Features DIP-SW, Push-SW, LCD, etc

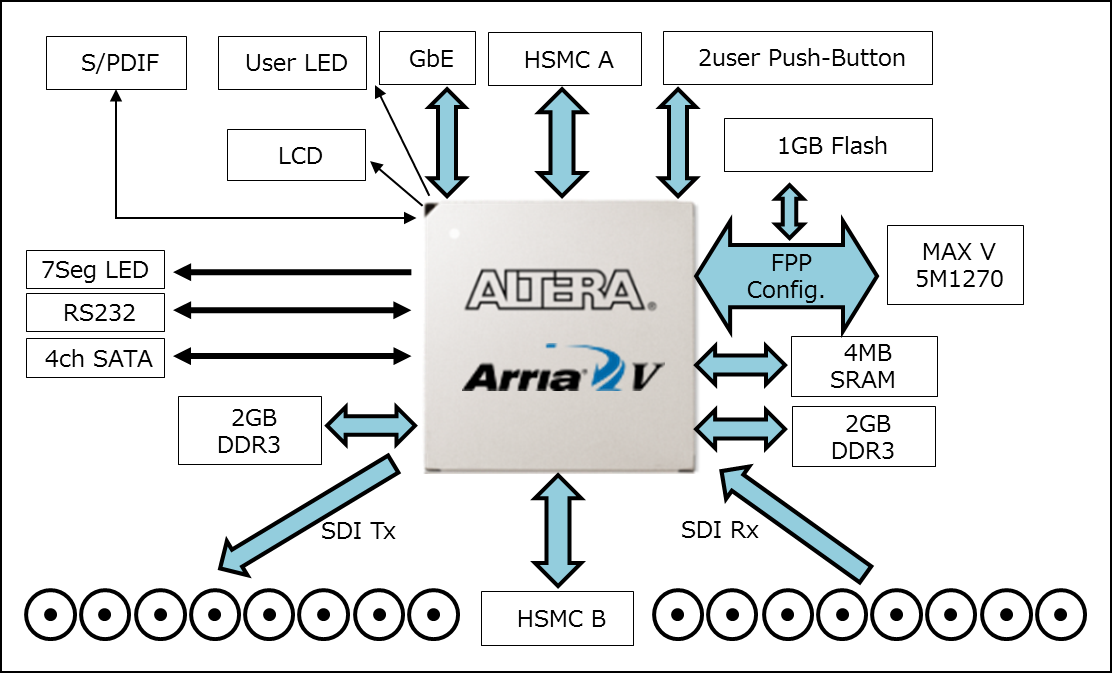

Block Diagram
