GenICam Host software for GEV/U3V (Discontinued)
Enables quick development of applications conforming to the EMVA GenICam standard
GenICam Software Package (BetelmaGiCs) is a software IP that fully complies with GenICam
standards. Adopting this software IP, users can easily develop their application software on GenICam.
GenICam is a standard formulated by EMVA (European Machine Vision Association). EMVA
standardized the software interface defining common API to control different interfaces of cameras such
as GigE Vision, USB3 Vision, CoaXpressTM , etc. in the same way.
Features
- Compliant with EMVA GenICam standard
- Flexible design that allows selection of different interfaces (GigE Vision, USB3 Vision, etc.) without changing application software.
- Compliant with GenICam GenTL standard (allows operation using GenICam compatible third-party applications)
- Supports Multi-Interface and Multi-Device
Specific features for GigE Vision
- Packet retransmission
- Event, Chunk data transmission
Specific features for USB3 Vision
- Transfer rate 3Gbps
- Event, Chunk data transmission
- Detection of a head of frame
Specifications
- Compliant with EMVA GenICam Standard Version 2.0
- Compatible Interfaces
- GigE Vision Standard Version 1.2/2.0
- USB3 Vision Standard Version 1.0.1
Supported Operating Systems
- Microsoft® Windows® 7 Professional SP1 64Bit
- Microsoft® Windows® 10 Pro 64Bit
- Linux (Planning)
* Please contact Macnica sales department about other operating systems.
Deliverables
- GenICam software (Binary)
- Sample application (Source)
- User’s manual, etc.

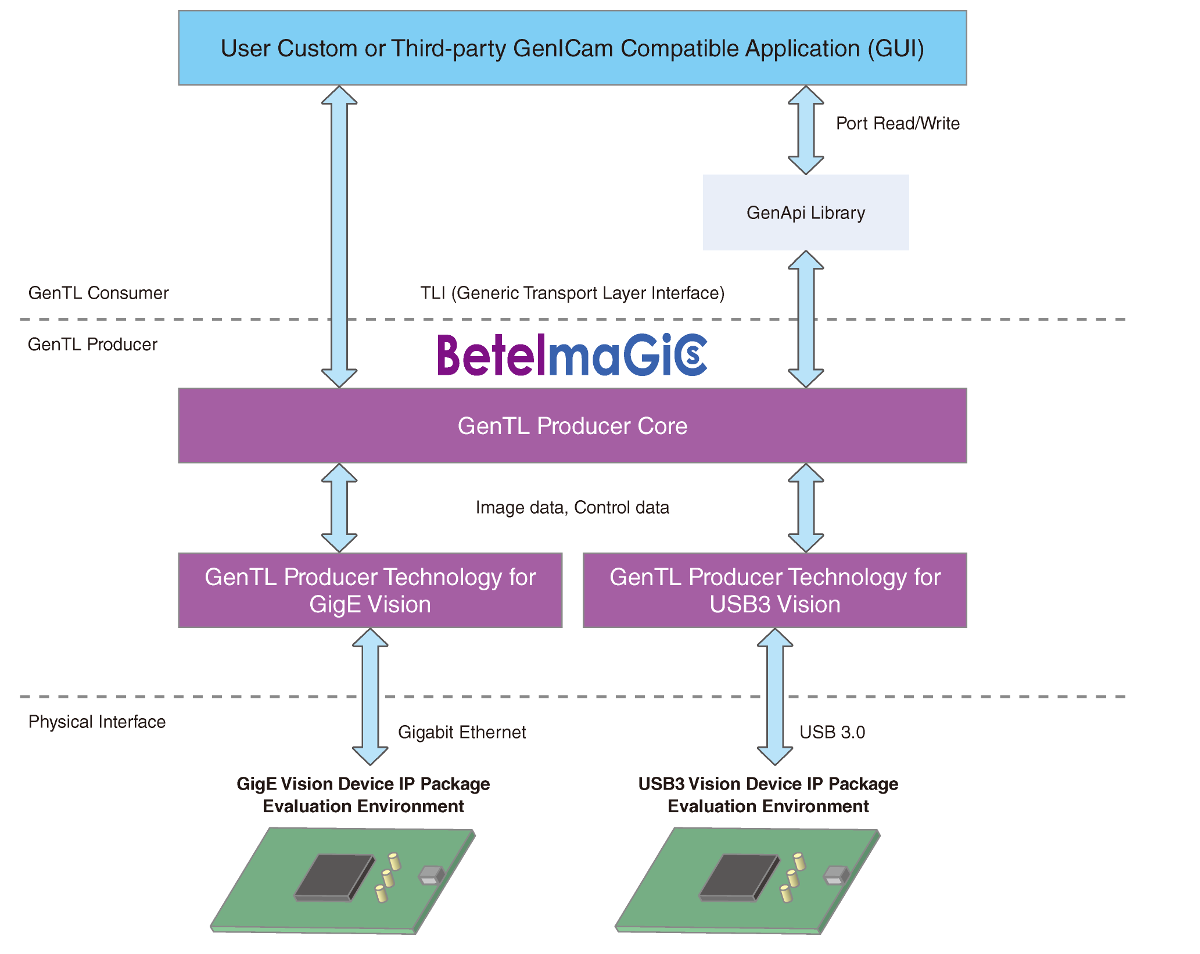

Software Configuration
All software required by the GenICam standard is provided, so users can focus on application development.

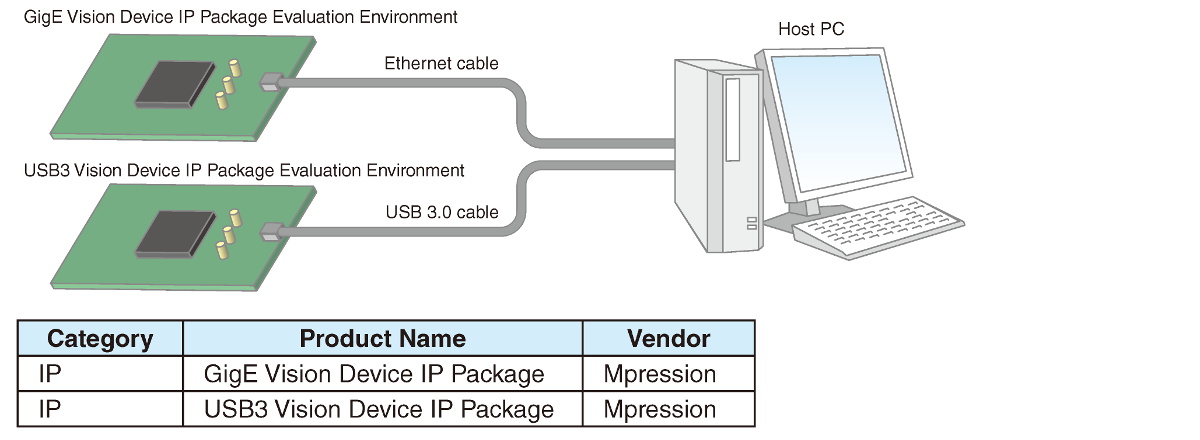

Evaluation Environment
Downloads
