OPC UA Server SDK (Discontinued)

OPC UA Server SDK is the embedded SDK to realize OPC UA Server function which is a recommended protocol by Industrie 4.0 as in “Reference Architectural Model Industrie 4.0”.
The SDK is based on C-Language and it makes easy implementation of OPC UA Server function for those industrial equipment such as OPC UA non-responding machine tools and robots.  [Supervised by Puerto Co., Ltd.]


  • C-Language based API
    • Not only API but also Internal implementation is written in C-Language. The best for embedded systems.
  • Completed the compliance test with OPC UA standard.
    • Verified its functionality by UA Compliance Test Tool provided by OPC Foundation.
  • Supports Security Policy recommended by OPC Foundation.
  • Conform to various Companion Specifications.
    • VDMA, VDW, (EUROMAP77)


  • Compliant with OPC UA specification version 1.0.3
  • Profile
    • Embedded Profile

* Please contact Macnica sales department about Micro, and Nano Profile.

  • Transfer Protocol
    • UA-Binary
  • Security Policy
    • None, Basic128Rsa15, Basic256, Basic256Sha256

Required Resource

  • ROM
    • Windows version: about 600KB
    • Linux version: about 550KB
  • RAM
    • Windows/Linux: about 3MB

Verified Environment

  • Mpression Sodia Board(INTEL® Cyclone® V SoC)
  • TI AM335x Starter Kit(SitaraTM ARM® Processors)
  • Omron NYB17-212K2
  • NVIDIA Jetson TX2 / TX2i
  • Alpha Project AP-RZG-0A(Renesas RZ/G1E)
  • GlobalScale Technologies ESPRESSOBin Board(Marvell Armada3720)
  • Alpha Project AP-RZT-0A(Renesas RZ/T1)
  • INTEL® Cyclone® V SoC family
  • Texas Instruments SitaraTM AM335x ARM® Series
  • INTEL® Core i Series
  • NVIDIA Jetson TX2 / TX2i
  • Renesas RZ/G1E
  • Renesas RZ/T1
  • Marvell Armada3720
  • The other MPUs based on ARM® Cortex®-A, R Series
  • Linux Distribution
    • Debian v8.0 (jessie)
    • Ubuntu v16.04
  • Windows 10 Pro 64Bit
  • Windows 7 Professional 64bit
  • Windows 7 IoT Enterprise LTSB 64bit
  • VLP v2.0.3(CIP v4.4.55)
  • eForce uC3/Standard

    * Please contact Macnica sales department about other specific environment.

    Development Environment

    • Visual Studio 2017 Professional

    • gcc version 4.9.3

    * Please contact Macnica sales department about other versions.


    • OPC UA Server SDK (Binary)

    * Please contact Macnica sales department about providing source code.

    • Sample application

    • User’s manual

    • API manual

    Software Configuration

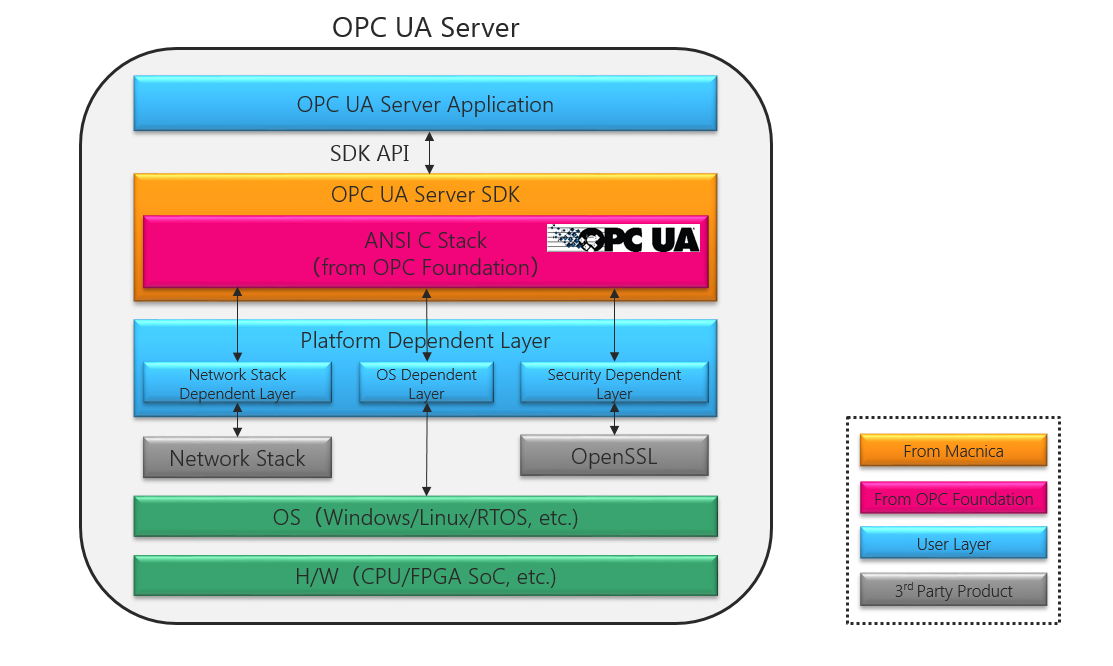

    OPC UA Software Configuration

    Evaluation Environment

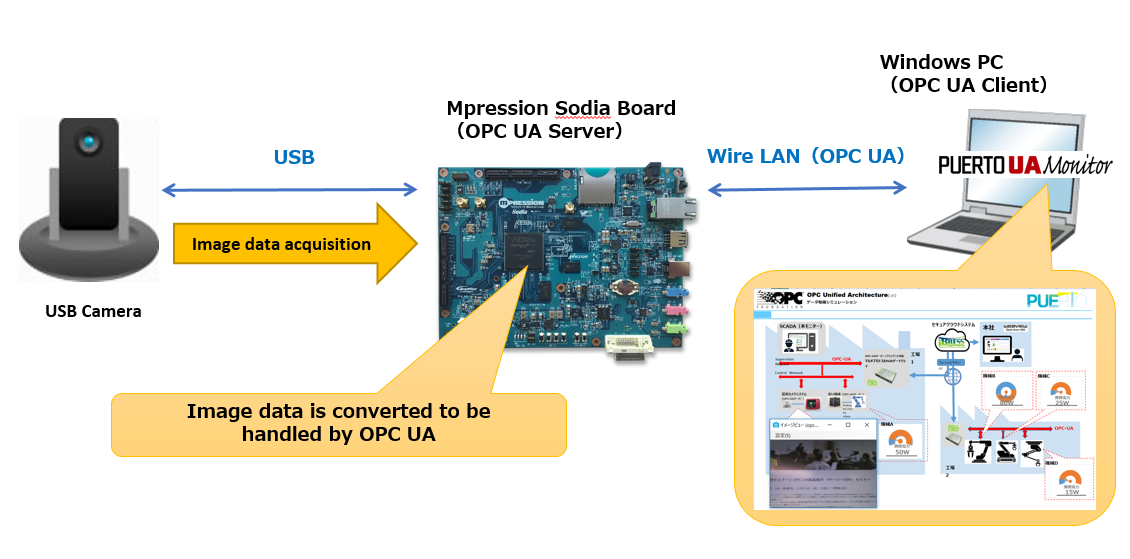

    OPC UA Evaluation Environment
